Description

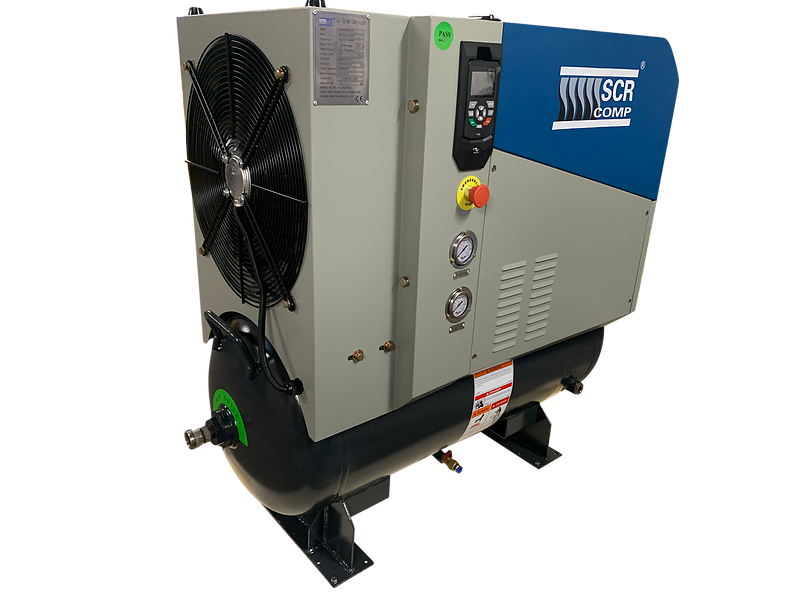

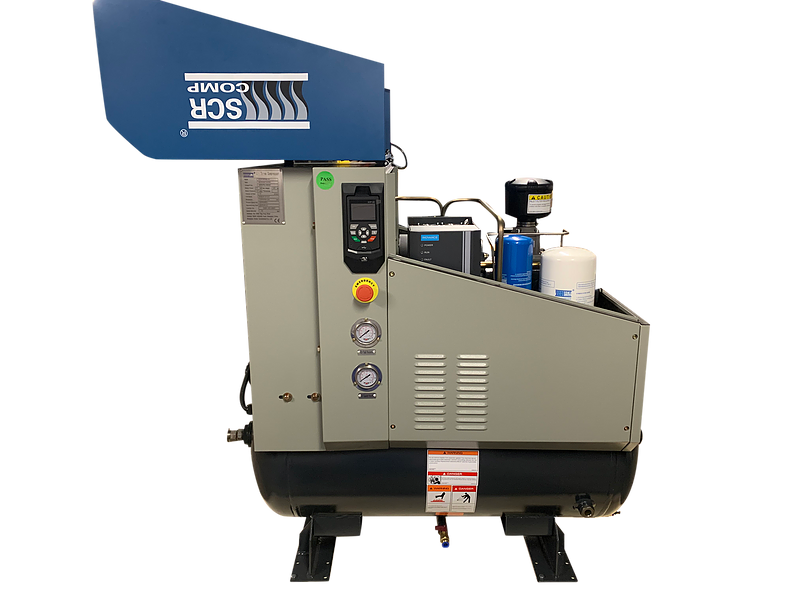

PM2 series – The very latest energy saving screw compressor, featuring a permanent magnet IE4 oil cooled motor with 1:1 direct drive. Quiet operation with a wide operating speed range, mounted on a 130L air receiver.
- 10 Bar Variable Speed Screw Compressor
- Permanent Magnet ‘Super Premium Efficiency’ IE4 motor
- Low noise operation ~68dB
- Maximum Energy Saving potential
- Oil Cooled IP65 motor
- Bearing free motor design
- 1:1 Direct Drive
- Wide operating Speed
- Pure Soft start
- Simple to service and maintain
- Optional Wheels for easy installation and positioning
- On Board Scheduling for automatic timed start and stop times
- Compact design
- Automatic restart on power failure
- Low component count
- Solid Seamless steel pipework
- Unique 130L Air Receiver with segregated oil tank
Detailed information
| Output m³/min @ 7.0 barg: | 2.4 |
| Output CFM @ 7.0 barg: | 85 |
| Output m³/min @ 8.0 barg: | 2.3 |
| Output CFM @ 8.0 barg: | 81 |
| Output m³/min @ 10.0 barg: | 2 |
| Output CFM @ 10.0 barg: | 71 |
| Motor (kW): | 15 |
| Oil Free or Injected: | Injected |
| Receiver Mounted: | Yes |
| Speed Fixed or Variable: | Variable |
| Drive (belt or direct): | Direct |
| Cooling (air or water): | Air |
| Dimensions (mm) LxWxH: | 1250 x 605 x 1115 |
| Weight (kg): | 340 |
| Pipe Size: | BSP 0.75 |
