Description

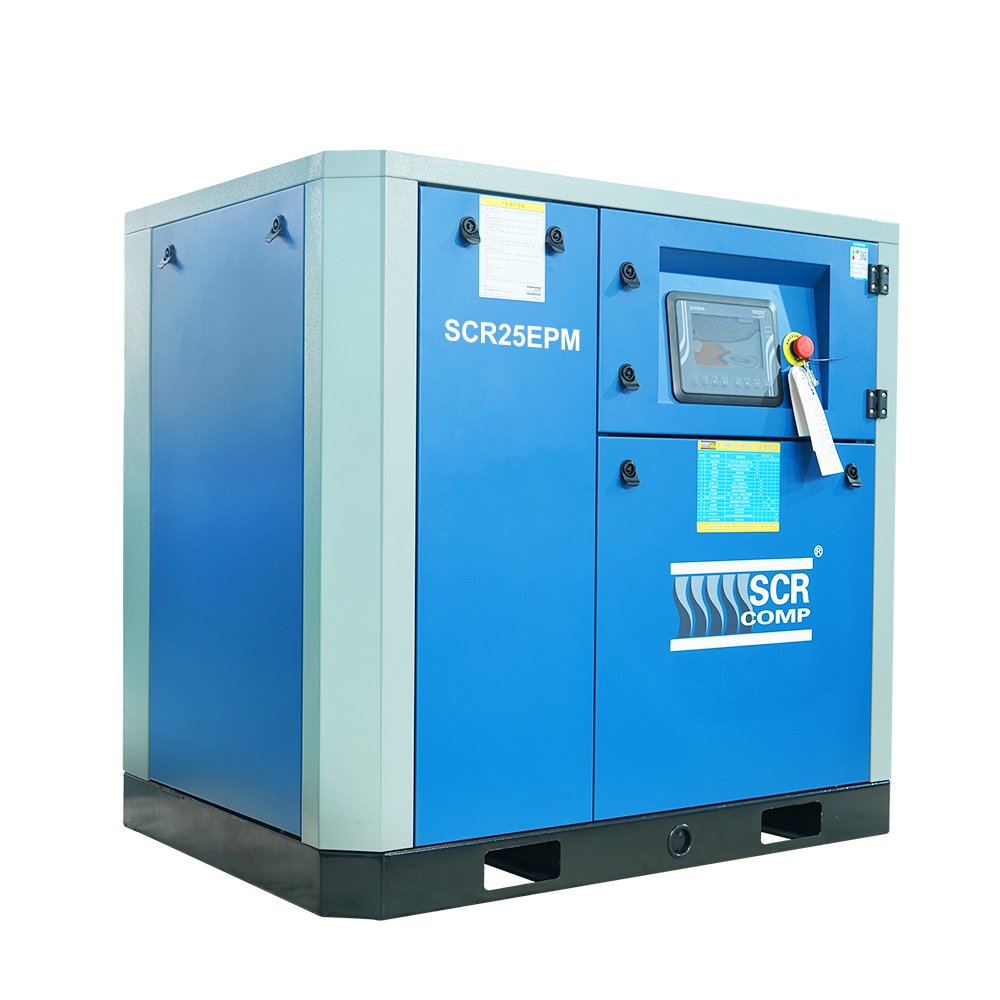

EPM series – Ultra high efficiency oil cooled IE4 permanent magnet motor technology with 1:1 direct drive. Oversized air end gives high flow output compared to standard machines. Exceptionally quiet operation, variable speed cooling fan, compact footprint, full colour touchscreen controller, 25% to 100% speed range, 30% oversized cooler and separator.
- Permanent Magnet ‘Super Premium Efficiency’ motor
- Oversized air end
- Up to 25% increase in flow compared to standard compressors
- Low Rotational Speed
- Oil Cooled IP65 motor up to 90kW
- Bearing free motor design
- 1:1 Direct Drive
- Wide operating Speed range from 25% to 100% Speed
- Pure Soft start
- Low noise operation 68dB
- Variable Speed Cooing Fan
- 30% Oversized Separator & Cooler
- Colour touchscreen with built in scheduling
- Compact Footprint
- Easy Access for servicing
Detailed information
| Output m³/min @ 7.0 barg: | 3.7 |
| Output CFM @ 7.0 barg: | 131 |
| Output m³/min @ 8.0 barg: | 3.5 |
| Output CFM @ 8.0 barg: | 123 |
| Output m³/min @ 10.0 barg: | 2.9 |
| Output CFM @ 10.0 barg: | 102 |
| Motor (kW): | 18.5 |
| Oil Free or Injected: | Injected |
| Receiver Mounted: | No |
| Speed Fixed or Variable: | Variable |
| Drive (belt or direct): | Direct |
| Cooling (air or water): | Air |
| Dimensions (mm) LxWxH: | 1200 x 800 x 1100 |
| Weight (kg): | 480 |
| Pipe Size: | BSP 1 |
